HPE A 5120-24G-PoE+ EI hanterad L3 Gigabit Ethernet (10/100/1000) Strömförsörjning via Ethernet (PoE) stöd 1U Svart

  • Brand: HPE
  • Category:
  • SKU: JG236-61001
  • EAN: 4053162835542

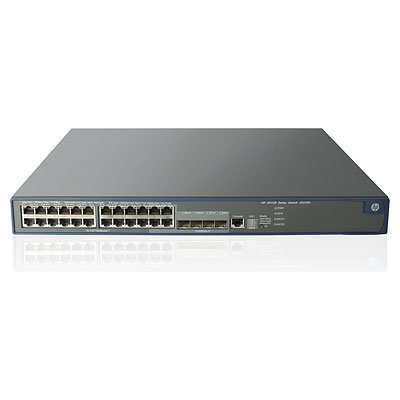

HP 5120-24G-PoE+ EI Switch with 2 Interface Slots

Trade Prices

Distributor Product SKU Stock Updated Price
EET Sverige AB A5120-24G-PoE+ EI Switch W126149241 Register free see stock
EET Sverige AB A5120-24G-PoE+ EI Switch W126149241EXC

Related Products

Description

The HP 5120 EI Switch Series is comprised of Gigabit Ethernet switches that support static Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide up to four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High scalability provides investment protection with two expansion slots, each of which can support two-port 10GbE expansion modules. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Quality of Service (QoS)
• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic

Management
• Friendly port names: allows assignment of descriptive names to ports

Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

Performance
• Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput

Resiliency and high availability
• Separate data and control paths: separates control from services and keeps service processing isolated; increases security and performance

Layer 2 switching
• 16K MAC address table: provides access to many Layer 2 devices

Layer 3 services
• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Specifications

Management features
Multicast-stödJa
Switch typhanterad
Switch-lagerL3
Webbaserad adminstraionJa
Stöd för garanterad tjänstekvalitet (QoS)Ja
Nätverk
IGMP-snoopingJa
KommunikationsstandarderIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Full duplexJa
VLAN-stödJa
STP (Spanning Tree Protocol)Ja
routing poster32
PortspeglingJa
LänkaggregeringJa
FlödeskontrollJa
Broadcast Storm-kontrollJa
Automatisk avkänningJa
VLAN-funktioner
VLAN-stödJa
Prestanda
StaplingsbarJa
Paketbuffertminne2 MB
Expansionsmodul stödJa
MinnestypSDRAM
Internminne128 MB
Flashminne16 MB
Anslutningar
Antal grundläggande RJ-45 Ethernet-portar24
Typ av grundläggande RJ-45 Ethernet-portarGigabit Ethernet (10/100/1000)
Antal Combo SFP-portar4
KonsolportRJ-45
Data transmission
Switch kapacitet144 Gbit/s
Genomströmning107,2 Mpps
Latens (1 Gbps)3,2 ps
Latens (10 Gbps)2,6 ps
Paketbuffertminne2 MB
Bevakning
SSH / SSL-stödJa
IGMP-snoopingJa
Åtkomstkontrollista (ACL)Ja
DHCP-funktionerDHCP client
Multicast-funktioner
Multicast-stödJa
Design
RackmonteringJa
StaplingsbarJa
Produktens färgSvart
Formfaktor1U
Strömtillförsel
AC-inspänning100 - 240 V
Växelström Frekvens50 - 60 hz
Strömförbrukning (vanlig)495 W
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödJa
Total Power over Ethernet (PoE)-budget370 W
Miljökrav
Värmeavgivning425 BTU/h
Vikt & dimension
Bredd439,9 mm
Djup420,1 mm
Höjd43,7 mm
Vikt7 kg
