HPE Aruba Networking 5412R 92GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch hanterad L3 Gigabit Ethernet (10/100/1000) Strömförsörjning via Ethernet (PoE) stöd 7U Grå

HPE Aruba Networking 5412R 92GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch hanterad L3 Gigabit Ethernet (10/100/1000) Strömförsörjning via Ethernet (PoE) stöd 7U Grå

  • Brand: HPE
  • Category:
  • SKU: JL001A
  • EAN: 0888182604380 4053162933576 01 ...2933576 0190017255323 0888182604540more

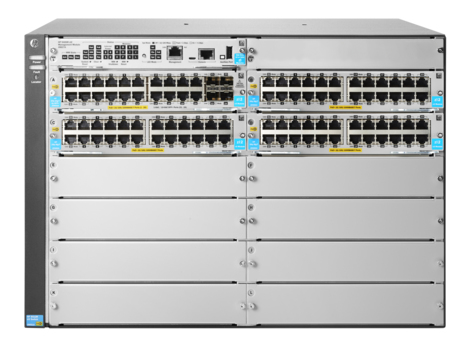

HP 5412R 92GT PoE+ and 4-port SFP+ (No PSU) v3 zl2 Switch

Trade Prices

Distributor Product SKU Stock Updated Price
Also Sweden

HPE 5412R 92GT PoE+ / 4SFP+ v3 zl2 Swch

 2393710 Register free see stock
EET Sverige AB

5412R 92GT PoE+/4SFP+v3 zl2

 JL001A

Related Products

Description

The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.

Robust virtualization with HP AllianceOne solutions, hitless failover, QoS and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.

Specifications

Management features
Switch typhanterad
Switch-lagerL3
Webbaserad adminstraionJa
Stöd för garanterad tjänstekvalitet (QoS)Ja
Anslutningar
Antal grundläggande RJ-45 Ethernet-portar92
Typ av grundläggande RJ-45 Ethernet-portarGigabit Ethernet (10/100/1000)
Antal SFP+-modulplatser4
Typ av minneskortSD
Nätverk
KommunikationsstandarderIEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u
Full duplexJa
VLAN-stödJa
routing poster10000
IP-routningJa
Automatisk avkänningJa
Auto MDI / MDI-XJa
10G stödJa
IGMP-snoopingJa
Data transmission
Adresstabellstorlek64000 poster
Switch kapacitet1920 Gbit/s
Genomströmning1142,8 Mpps
Latens (1 Gbps)2,8 ps
Latens (10 Gbps)1,8 ps
Jumbo Frames stödJa
Bevakning
SSH / SSL-stödJa
IGMP-snoopingJa
Åtkomstkontrollista (ACL)Ja
DHCP-funktionerDHCP server
Design
RackmonteringJa
StaplingsbarJa
Produktens färgGrå
Formfaktor7U
Prestanda
Processorfrekvens1200 MHz
Ljudnivå Lc IEC49 dB
MinnestypDDR3-SDRAM
Internminne4096 MB
Flashminne16 MB
Inbyggd processorJa
ProcessorQorIQ P2020
StaplingsbarJa
Harmonized System (HS)-kod85176990
Strömtillförsel
Strömförsörjning ingårNej
AC-inspänning200 - 240 V
Växelström Frekvens50 - 60 hz
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stödJa
Övrigt
Latens1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs
PrestandahanteringHPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager
Minne och processorDepend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.
Vikt (imperial)20,5 kg (45.2 lbs)
Externa anslutningar92 RJ‑45 auto‑sensing 10/100/1000 PoE+ ports 4 open 10 GbE SFP+ transceiver slots 8 open module slots Supports a maximum of 288 auto‑sensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi‑Gigabit or 24 40 GbE ports, or a combination.
Dimension (B x D x H) (imperial)444,5 x 450,9 x 307,3 mm (17.5 x 17.8 x 12.1")
Miljökrav
Temperatur vid drift0 - 45 ° C
Temperaturintervall (förvaring)-40 - 70 ° C
Intervall för relativ operativ luftfuktighet15 - 95%
Fuktighet (förvaring)15 - 95%
Värmeavgivning4900 BTU/h
VLAN-funktioner
VLAN-stödJa
Vikt & dimension
Bredd444,5 mm
Djup450,9 mm
Höjd307,3 mm
Vikt20,5 kg
Logistikdata
Harmonized System (HS)-kod85176990
